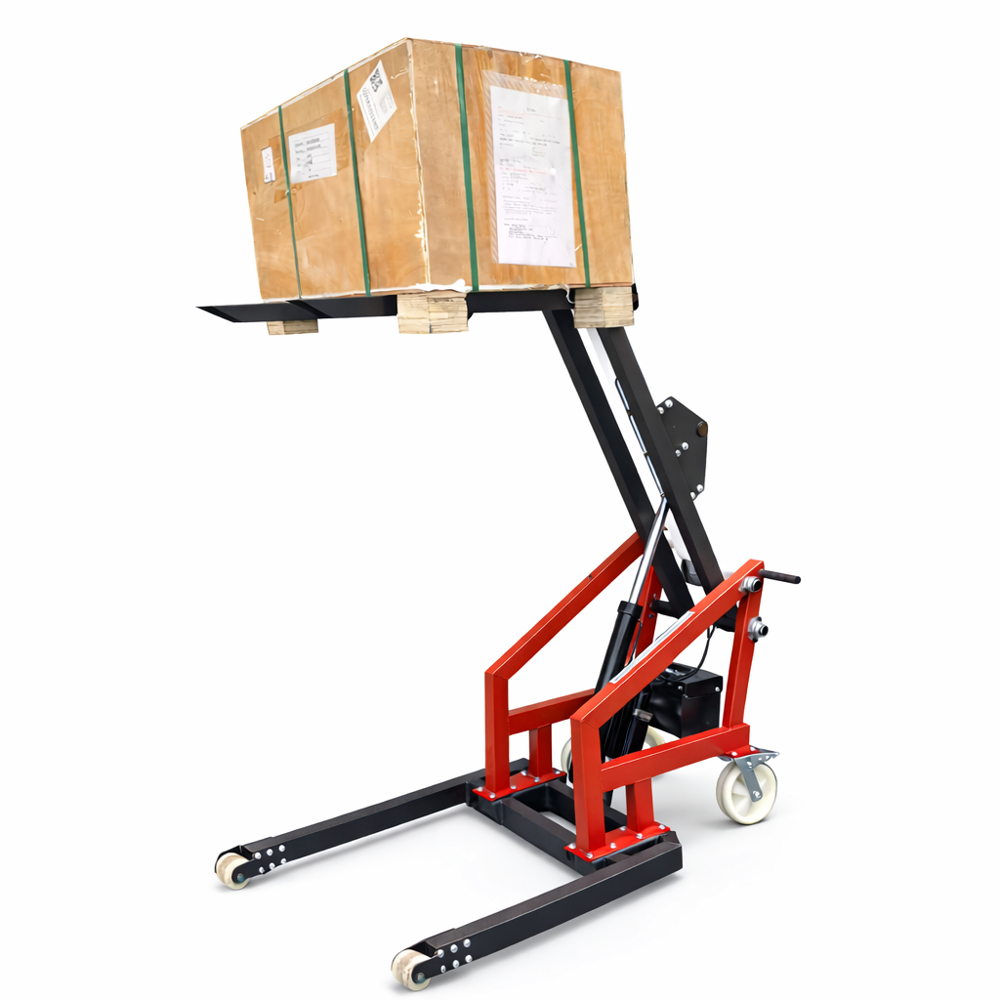

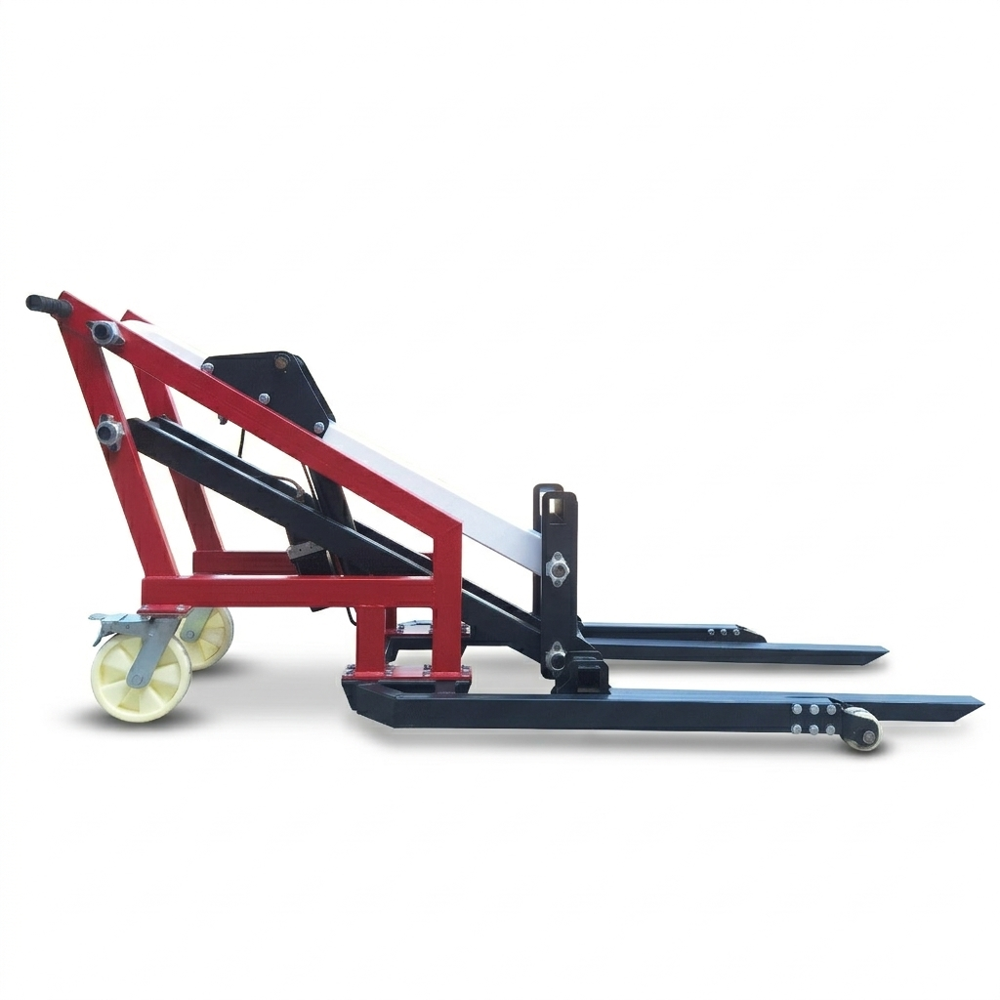

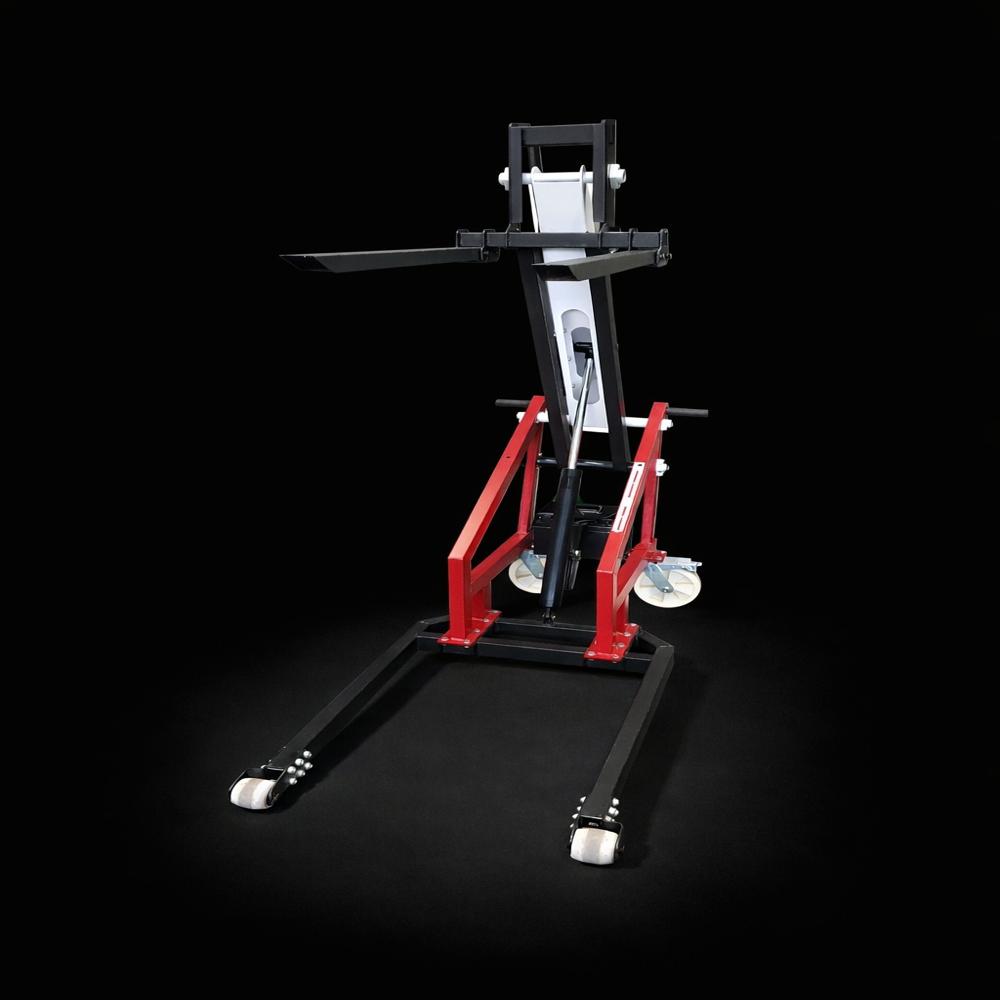

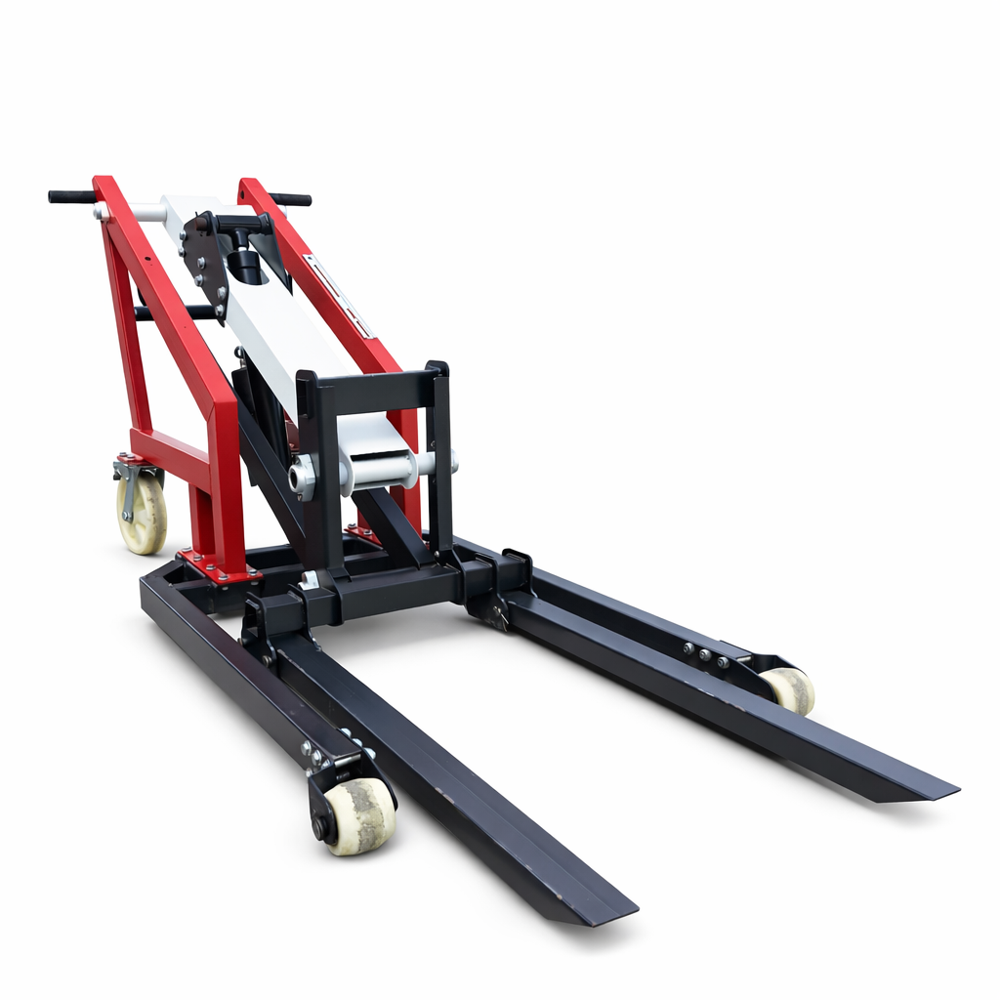

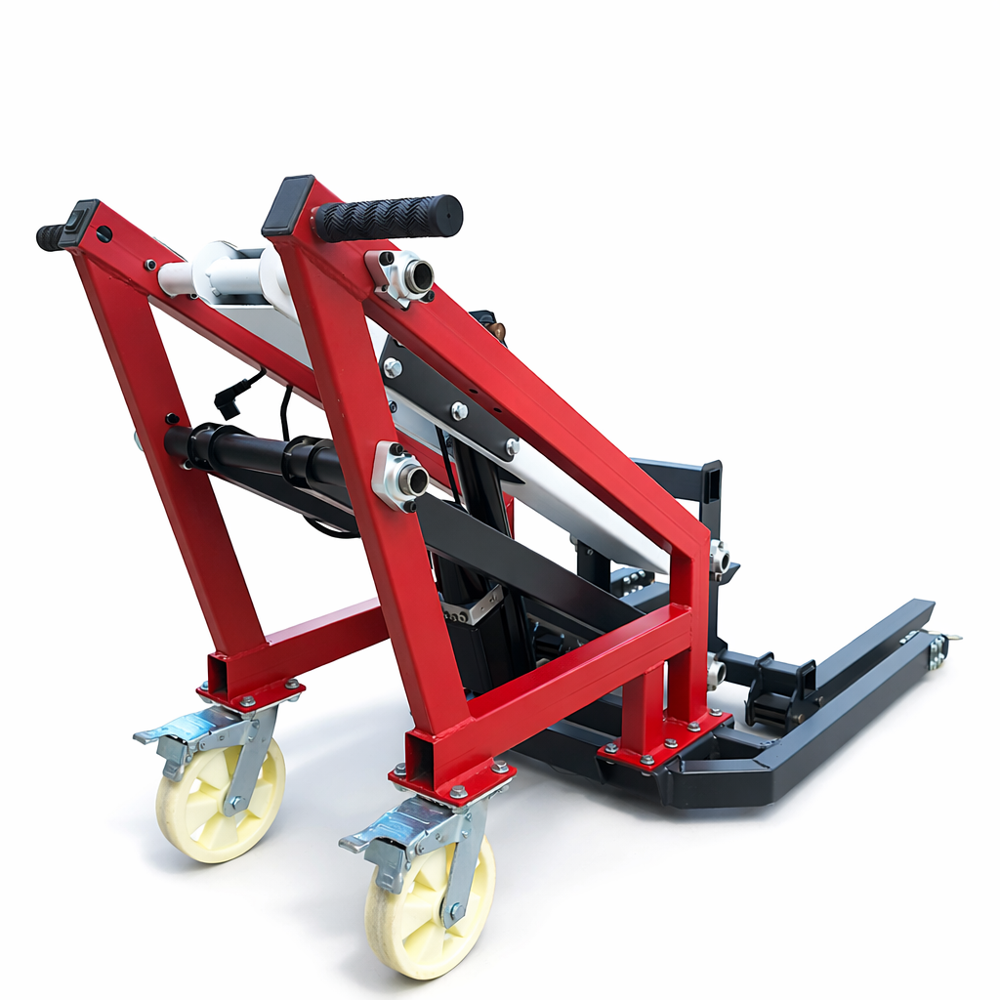

Electric Trilift-500

The Electric Trilift-500 is a high-performance, compact lifting and material handling solution designed for efficient vertical lifting and transportation of heavy loads in industrial, warehouse, and commercial environments. Engineered with a robust mild steel structure and finished with durable powder coating, it ensures strength, stability, and long operational life.

Powered by an 800W PMDC drive motor, the Trilift-500 delivers reliable lifting performance with zero emissions and low maintenance requirements. The system is equipped with an upward/downward control switch for precise lifting operations and a wheel lock mechanism for enhanced safety and secure positioning during loading and unloading.

With a rated load capacity of 500 kg and a maximum lift height of 1450 mm, this equipment is ideal for handling pallets, boxes, and heavy materials efficiently. The advanced sodium-ion/LFP battery ensures consistent performance with fast charging capability. Its compact design and optimized turning radius make it suitable for confined working environments.

Key Features:

• High-performance 800W PMDC drive motor

• 500 kg load capacity for heavy-duty lifting

• Upward/Downward control switch for precise lifting

• Wheel lock system for enhanced safety and stability

• Maximum lift height of 1450 mm

• Durable powder-coated mild steel construction

• Long-lasting sodium-ion / LFP battery with BMS

• Compact design with 1100 mm turning radius

• Smooth and controlled lifting speed

• Low maintenance and energy-efficient operation

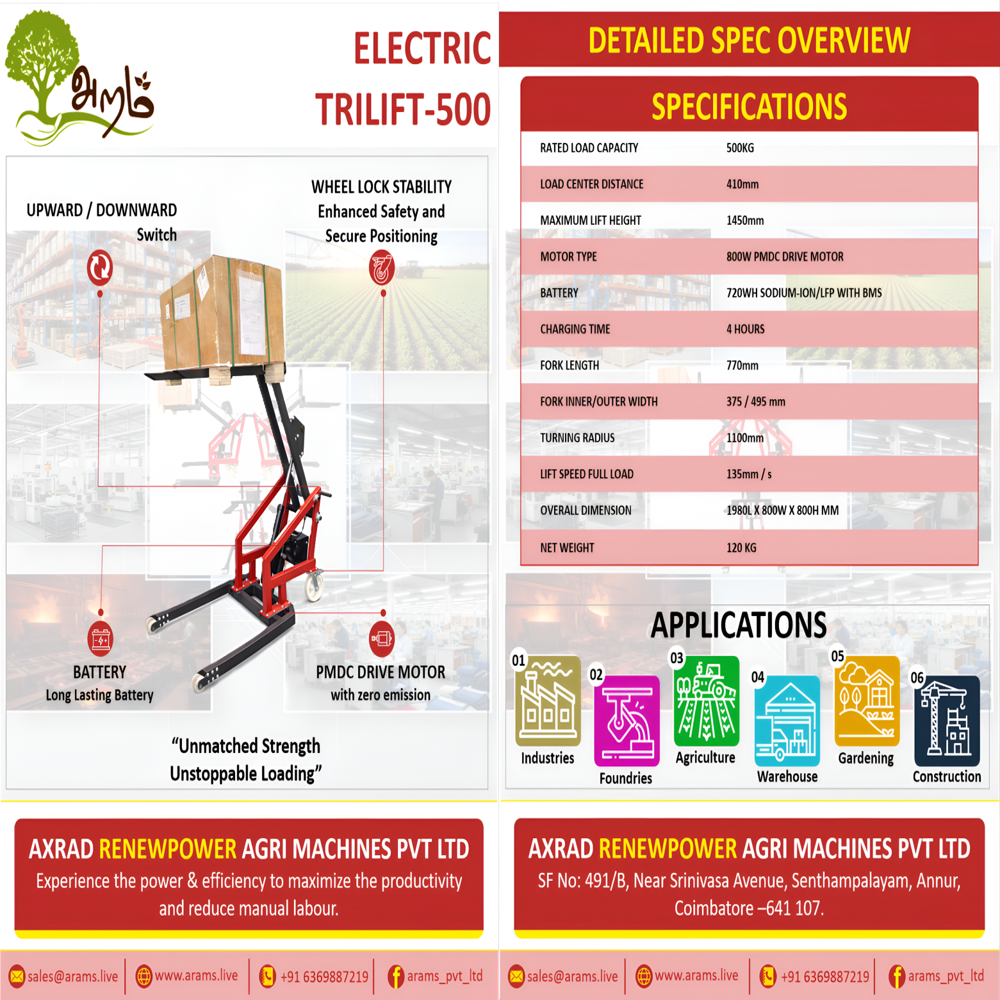

Technical Specifications:

• Rated Load Capacity: 500 kg

• Load Center Distance: 410 mm

• Maximum Lift Height: 1450 mm

• Motor Type: 800W PMDC Drive Motor

• Battery: 720 Wh Sodium-ion / LFP with BMS

• Charging Time: 4 Hours

• Fork Length: 770 mm

• Fork Inner/Outer Width: 375 / 495 mm

• Turning Radius: 1100 mm

• Lift Speed (Full Load): 135 mm/s

• Overall Dimensions: 1980 x 800 x 800 mm

• Net Weight: 120 kg

FAQs (Frequently Asked Questions):

Q1: What is the lifting capacity of the Electric Trilift-500?
A: It can lift up to 500 kg, suitable for heavy-duty industrial applications.

Q2: What is the maximum lift height?
A: The equipment can lift loads up to 1450 mm height.

Q3: What type of motor is used?
A: It uses an 800W PMDC drive motor for efficient and reliable lifting.

Q4: How long does the battery last?
A: The battery provides sufficient power for extended operations and supports fast charging within 4 hours.

Q5: Is it safe to operate?
A: Yes, it includes a wheel lock mechanism for stability and safe positioning during operation.

Q6: What applications is it suitable for?
A: Ideal for industries, warehouses, agriculture, foundries, gardening, and construction sites.

Q7: Is it easy to operate?
A: Yes, the up/down control system makes lifting simple and precise.

Q8: Can it be used in confined spaces?
A: Yes, its compact design and 1100 mm turning radius make it suitable for narrow areas.

Q9: What material is used for construction?
A: Made from mild steel with powder coating for durability.

Q10: What maintenance is required?
A: Minimal maintenancemainly battery care and periodic inspection.
