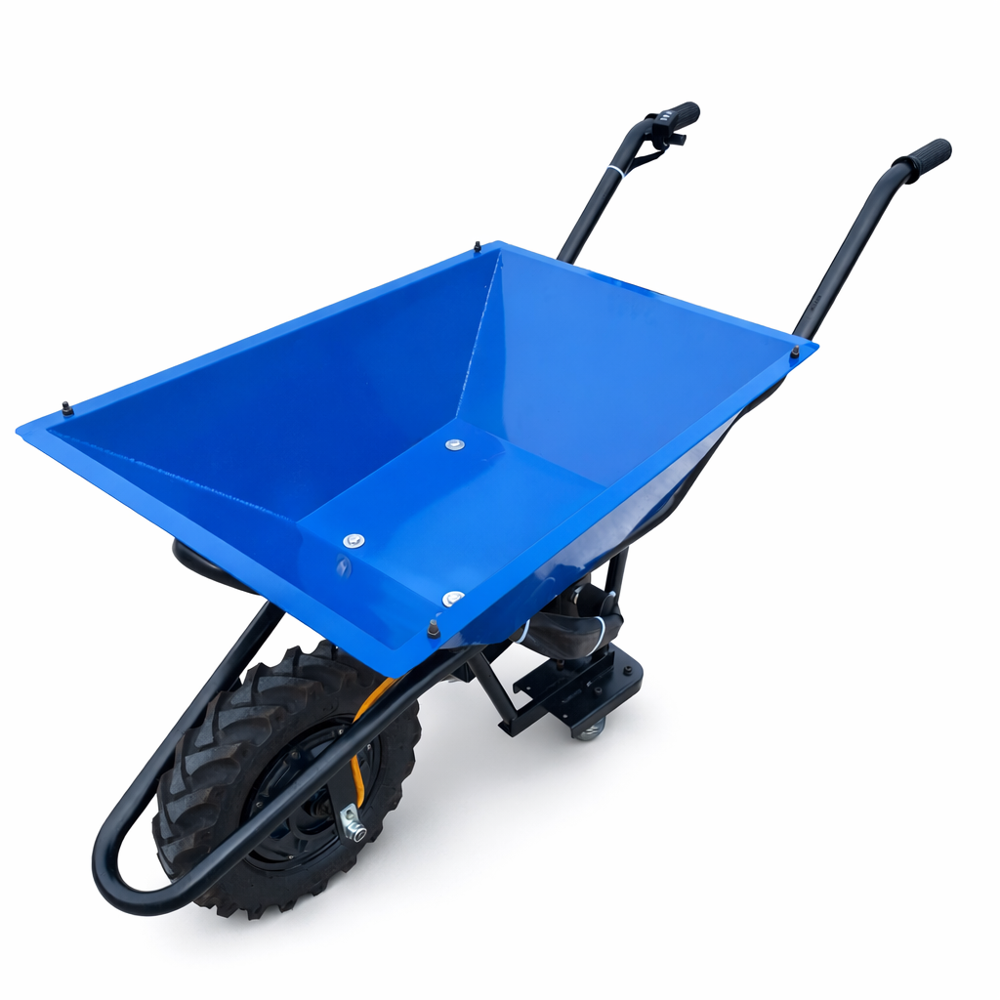

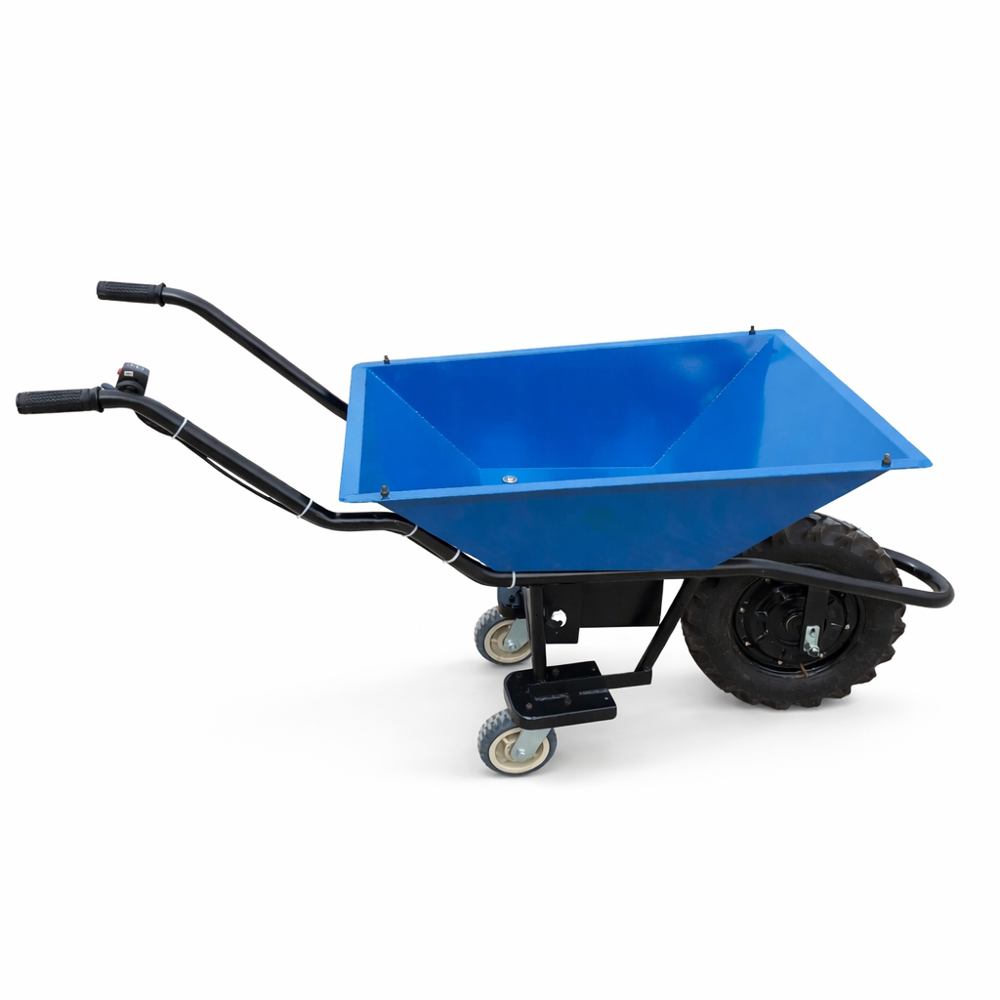

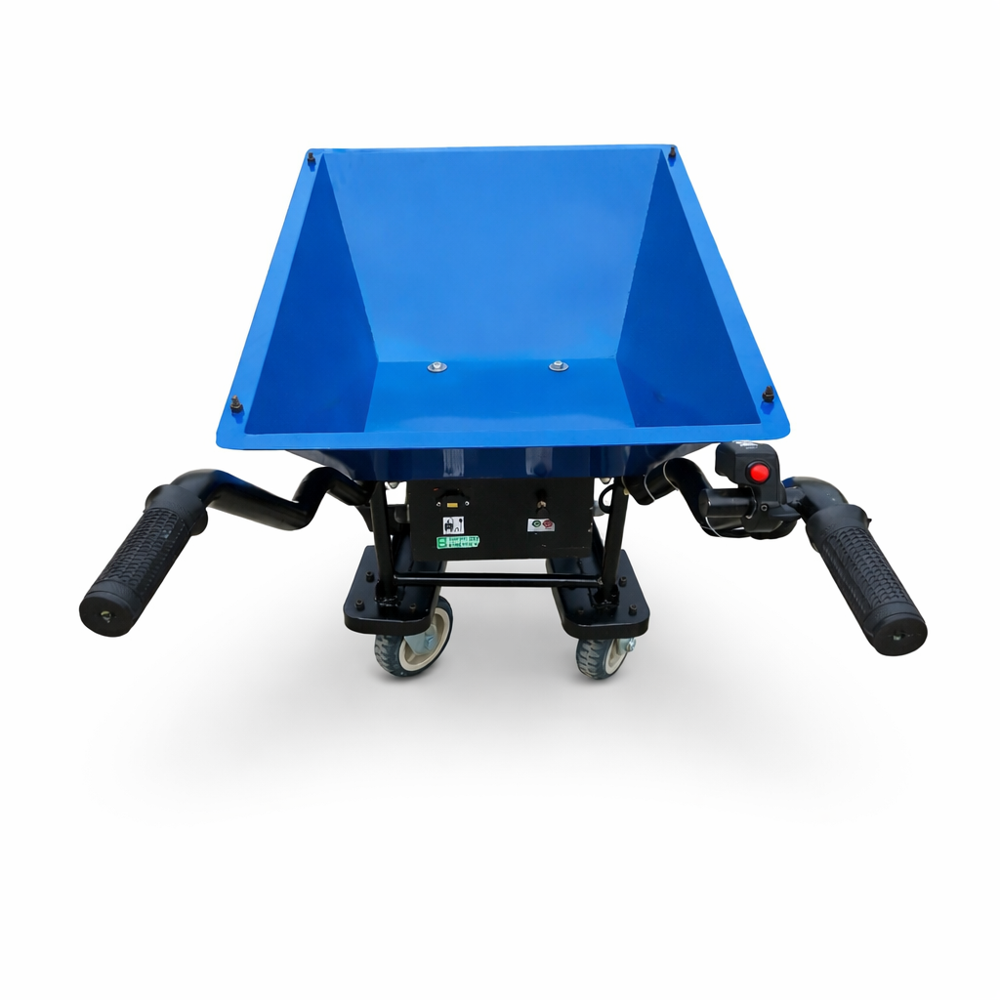

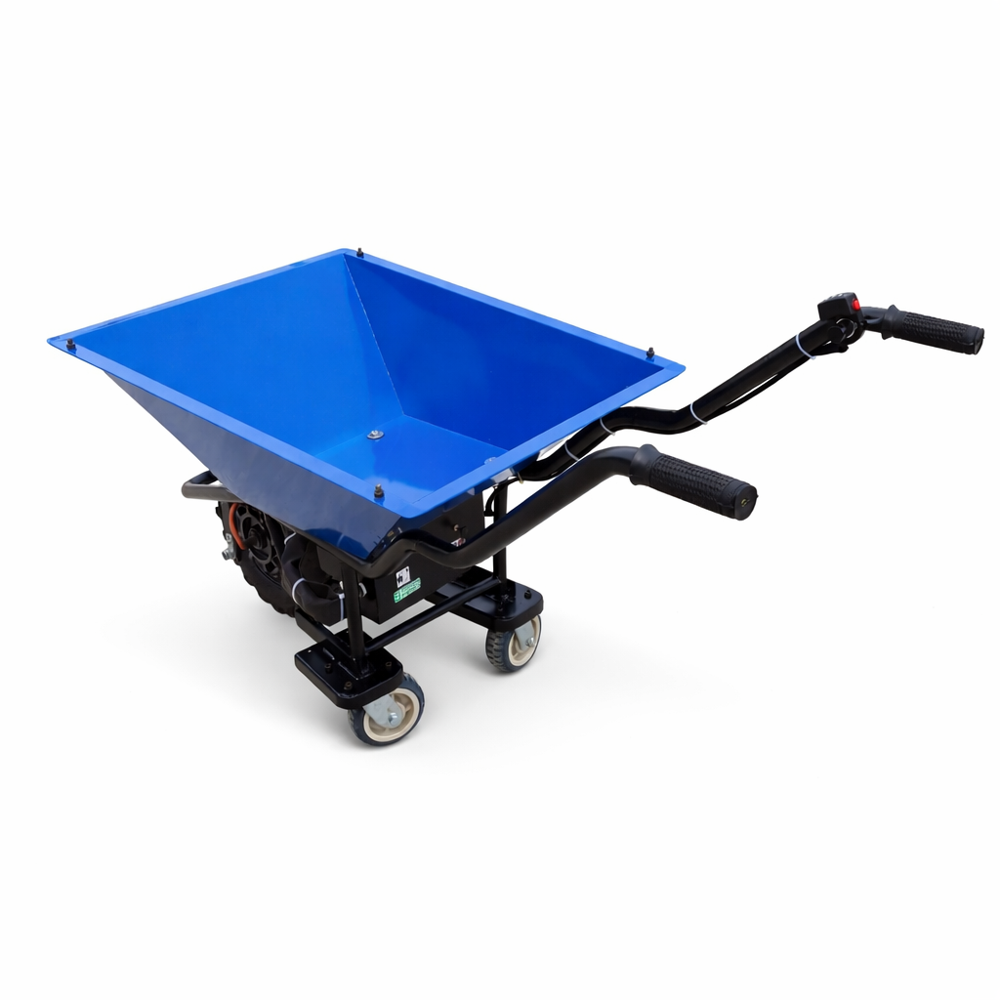

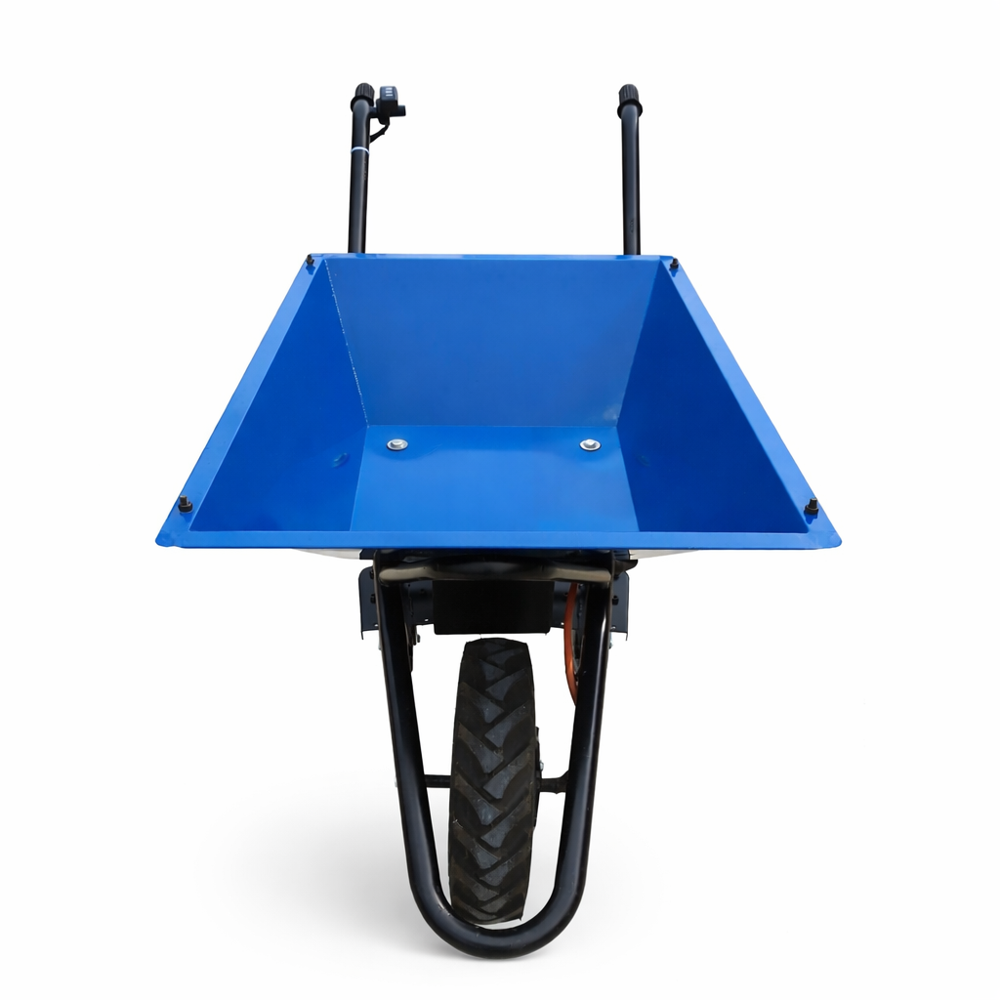

Electric Wheelbarrow V3

About Electric Wheelbarrow V3

The Electric Wheel Barrow is a high-performance, compact, and ergonomically designed material handling solution ideal for transporting materials such as vegetables, soil, and goods with minimal effort. Engineered with a strong and durable frame along with a robust load bin, it ensures long service life, stability, and reliable performance in agricultural, industrial, and commercial environments.

Powered by a 10 BLDC hub motor, the wheel barrow delivers efficient, smooth, and zero-emission operation. The thumb-operated throttle allows precise control, while the forward/reverse switch enables easy maneuverability in narrow pathways and confined working spaces.

With a payload capacity of up to 120 kg on flat surfaces (60 kg on rough roads) and a 70-litre load bin capacity, this machine is perfect for handling materials, produce, and tools. The advanced 576Wh sodium-ion / LFP battery with BMS ensures long operating hours of up to 8 hours per charge. Its compact structure, optimized design, and 12 climbing ability make it highly suitable for real-world terrain and field conditions. Optional solar charging further enhances energy efficiency and reduces operational cost.

Key Features

• High-efficiency 10 BLDC hub motor with zero emission
• Up to 120 kg load capacity (flat surface)
• 70-litre load bin for material handling
• Forward & Reverse switch for easy maneuverability
• Thumb throttle control for smooth and precise operation
• Strong and durable load bin structure
• Long-lasting 576Wh Sodium-ion / LFP battery with BMS
• Up to 8 hours runtime per charge
• Compact design for narrow space operation
• 12 climbing ability for inclined surfaces
• Tubeless tyres for better grip and durability
• Optional solar charging support
• Low maintenance and cost-effective operation

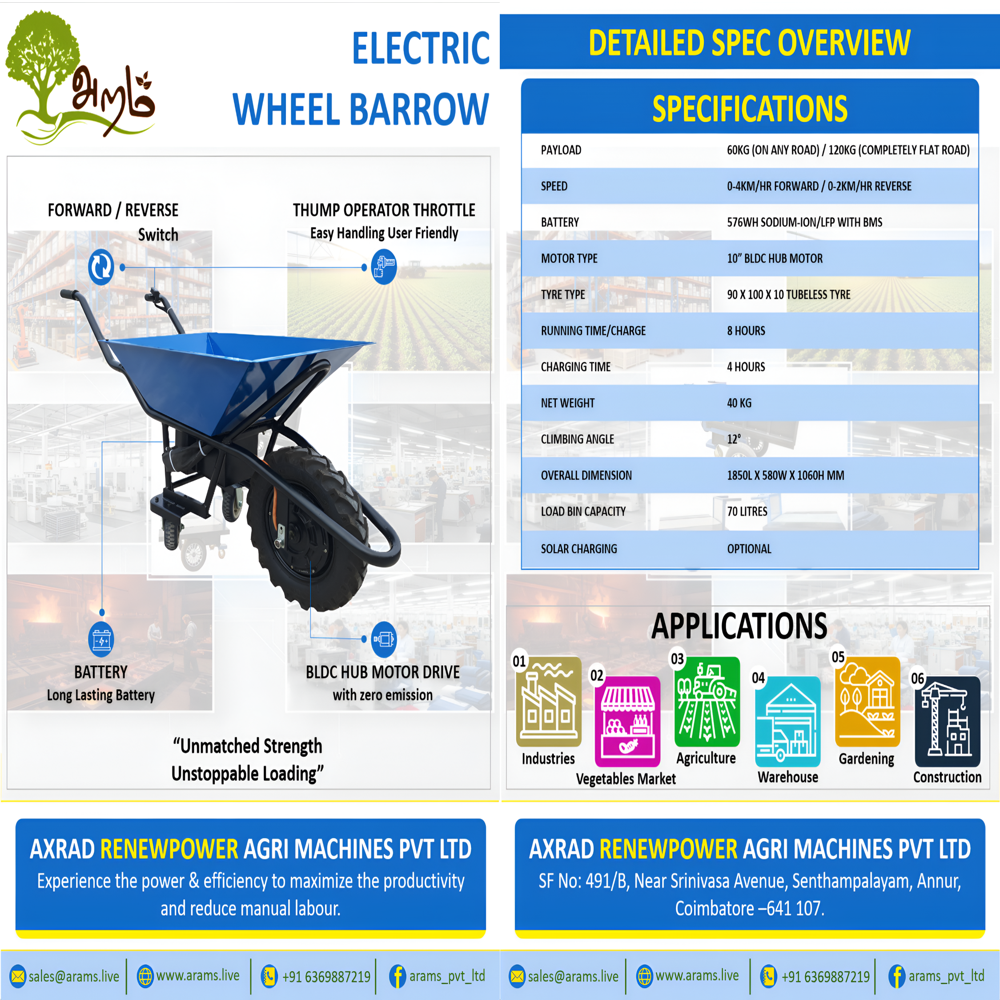

Technical Specifications

• Payload Capacity: 60 kg (any road) / 120 kg (flat road)
• Speed: 04 km/hr (Forward), 02 km/hr (Reverse)
• Battery: 576Wh Sodium-ion / LFP with BMS
• Motor Type: 10 BLDC Hub Motor
• Tyre Type: 90 x 100 x 10 Tubeless Tyre
• Running Time per Charge: 8 Hours
• Charging Time: 4 Hours
• Net Weight: 40 kg
• Climbing Ability: 12

• Overall Dimensions:

  • Length: 1850 mm

  • Width: 580 mm

  • Height: 1060 mm

• Load Bin Capacity: 70 Litres
• Solar Charging: Optional

FAQs (Frequently Asked Questions)

Q1: What is the load capacity of the Electric Wheel Barrow?
A: It can carry up to 120 kg on flat surfaces and 60 kg on rough terrain.

Q2: How long does the battery last?
A: It provides up to 8 hours of runtime depending on load and usage conditions.

Q3: What is the maximum speed?
A: It operates at up to 4 km/hr forward and 2 km/hr in reverse.

Q4: What type of motor is used?
A: It uses a 10 BLDC hub motor for efficient and low-maintenance operation.

Q5: Where can this wheel barrow be used?
A: It is ideal for agriculture fields, vegetable markets, warehouses, gardening, and construction applications.

Q6: Can it handle inclined surfaces?
A: Yes, it supports up to 12 climbing ability, suitable for slopes and ramps.

Q7: What type of tyres are used?
A: It is equipped with 90 x 100 x 10 tubeless tyres for better grip and durability.

Q8: Is solar charging available?
A: Yes, solar charging is available as an optional feature.

Q9: Is it easy to operate?
A: Yes, the thumb throttle and forward/reverse control system make it very user-friendly.

Q10: What maintenance is required?
A: Minimal maintenance mainly battery care and periodic inspection.
