Electric Wheelbarrow V2

About Electric Wheelbarrow V2

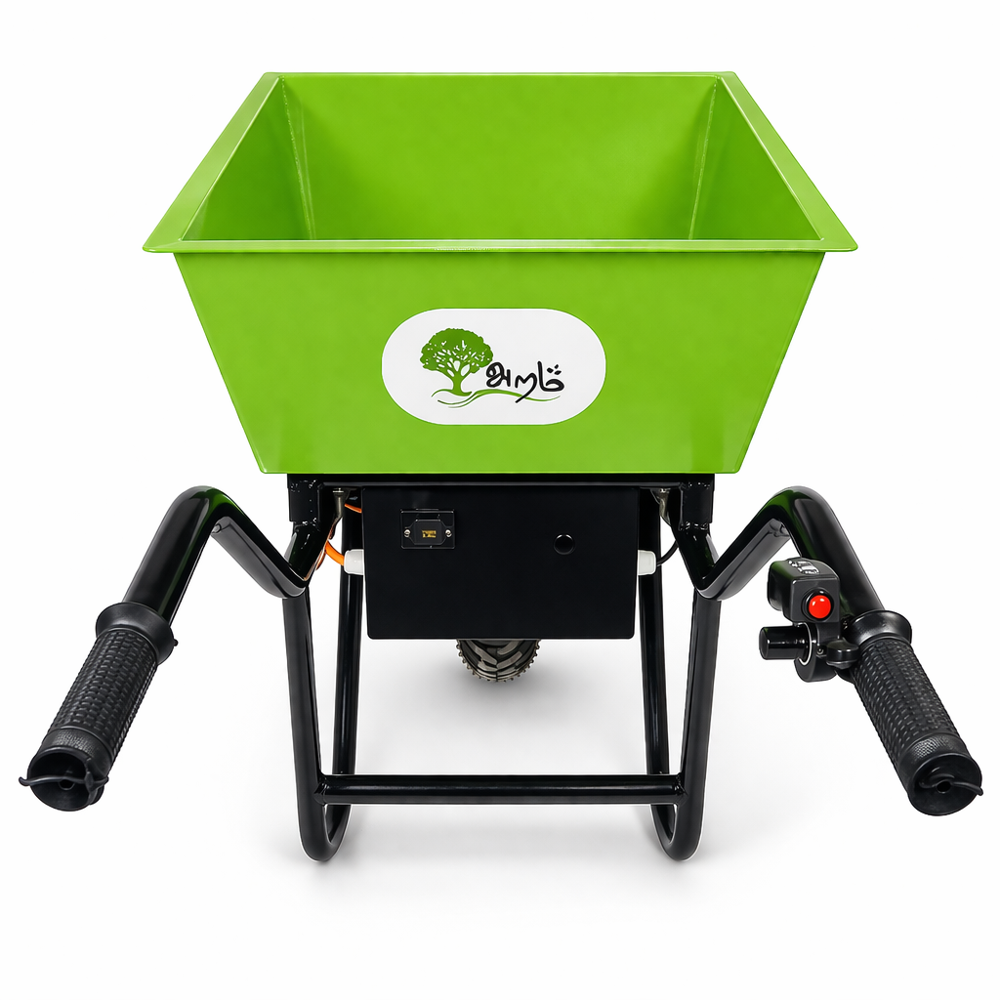

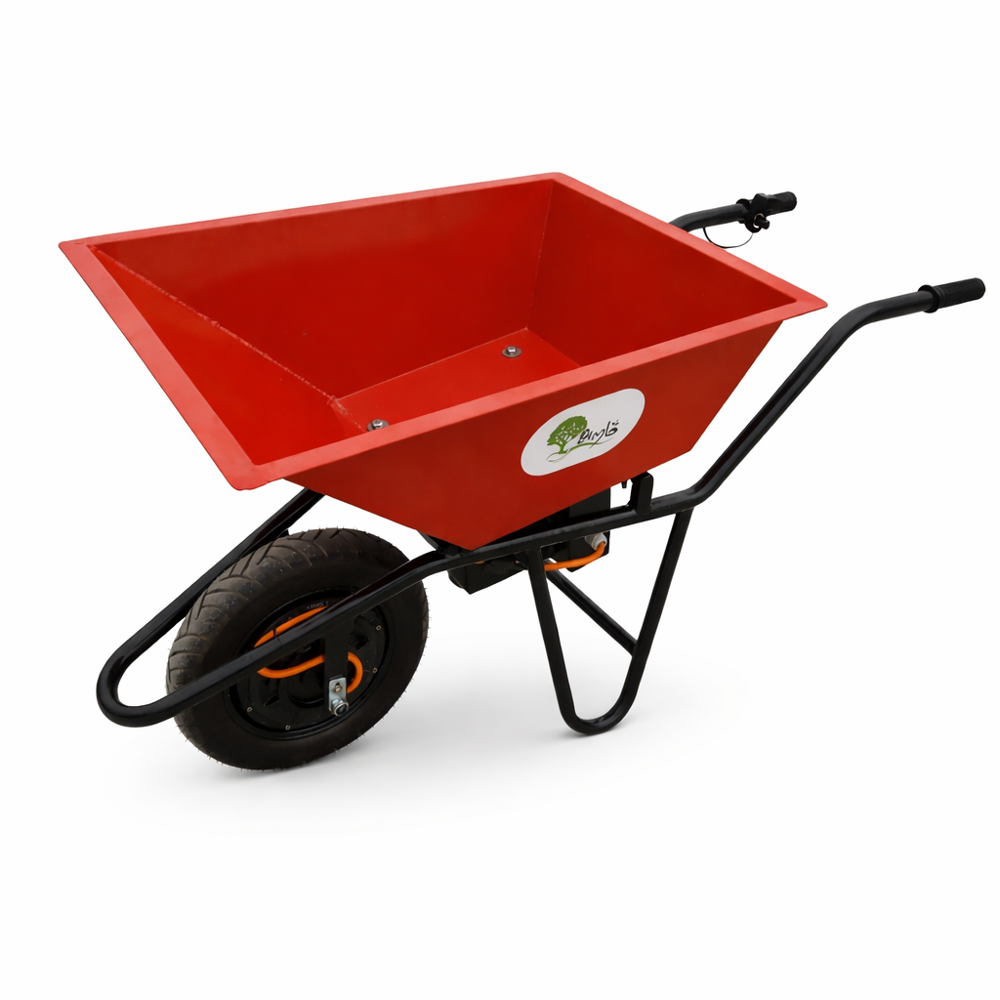

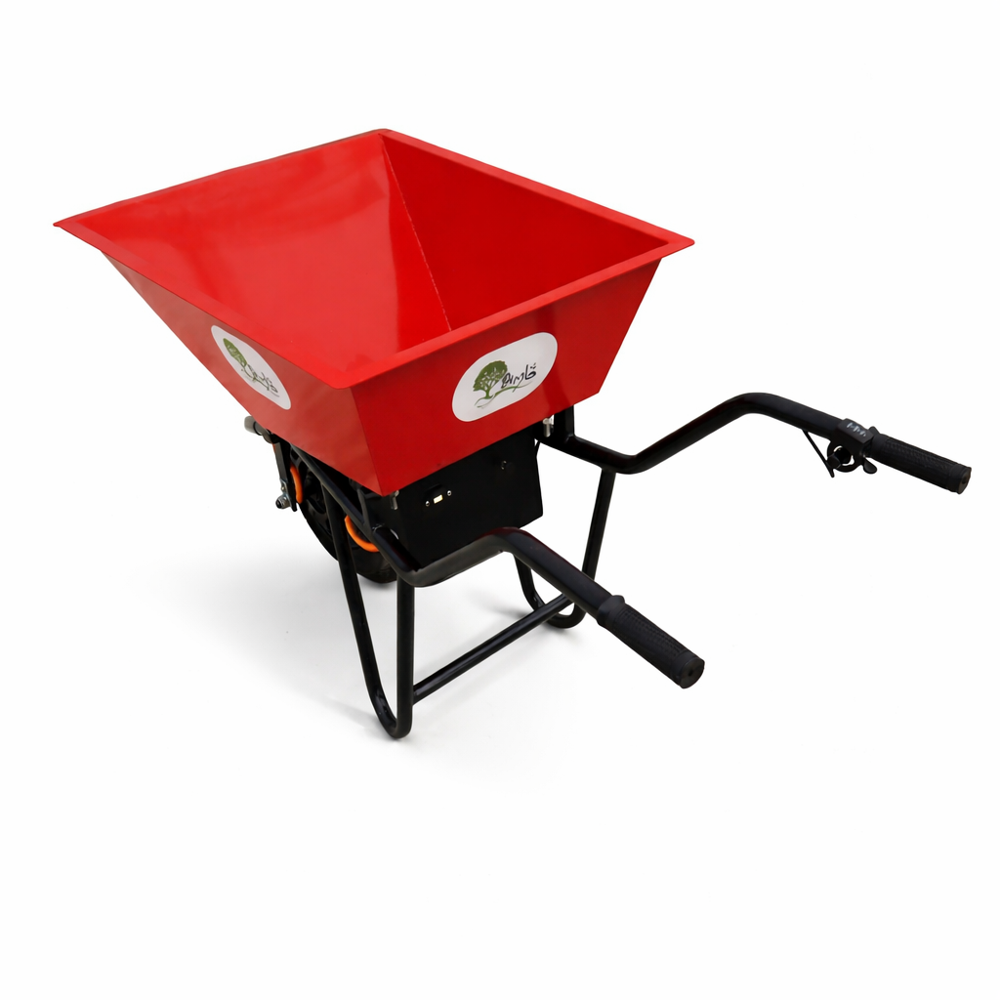

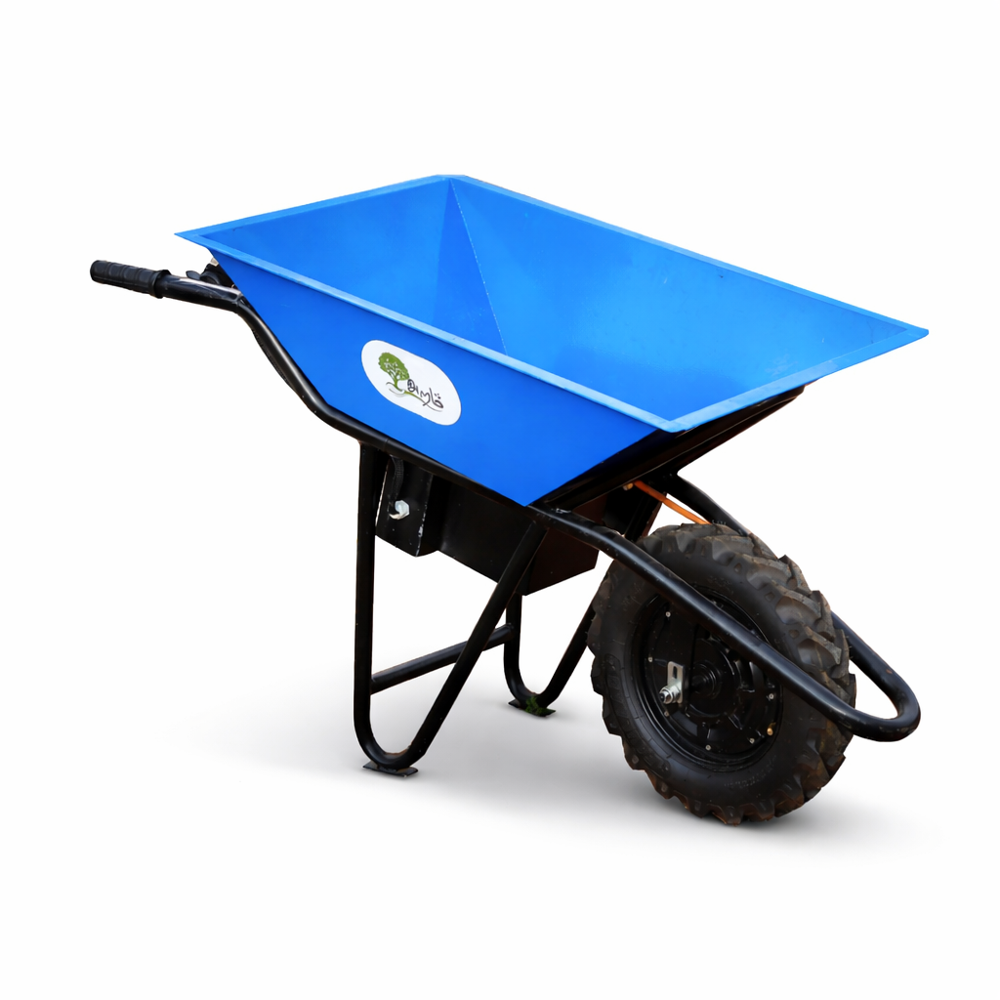

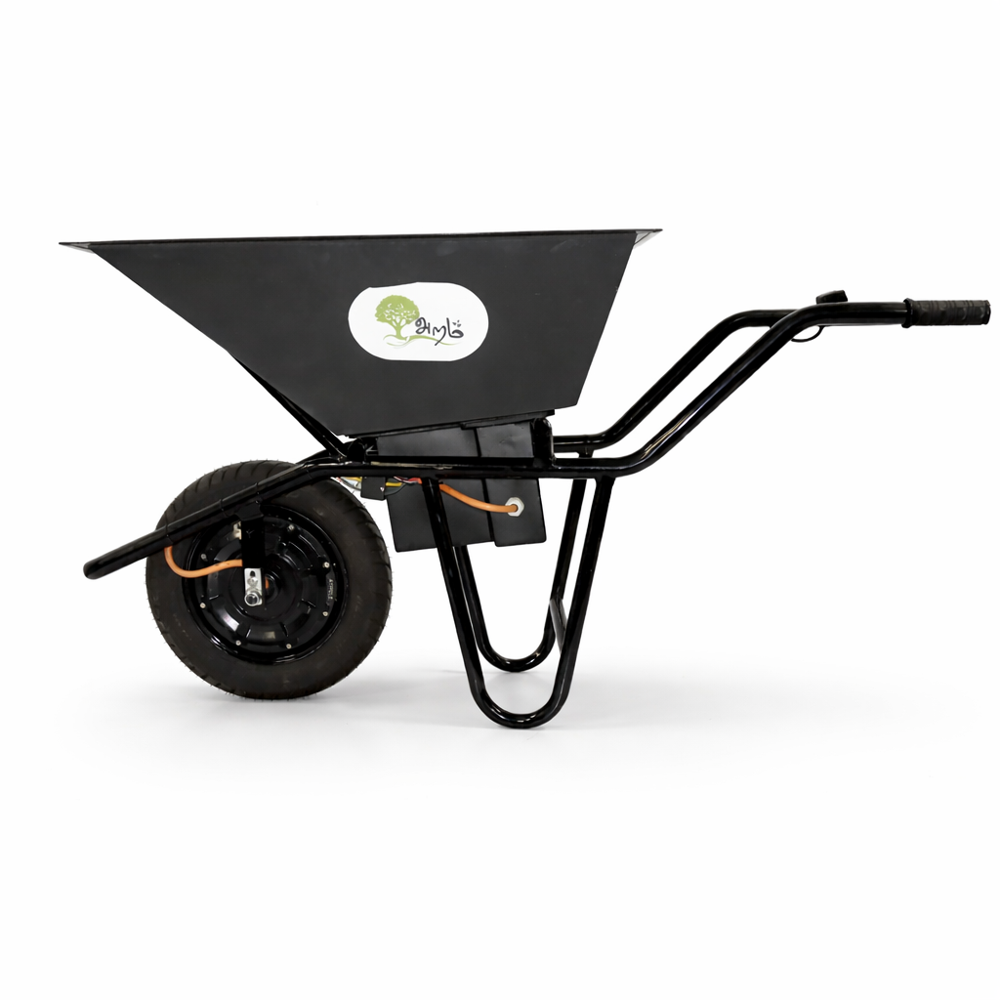

The Electric Wheelbarrow is a compact, efficient, and ergonomically designed material handling solution ideal for transporting light to medium loads across agricultural fields, warehouses, and industrial environments. Built with a strong mild steel frame and powder-coated finish, it ensures durability, corrosion resistance, and long service life.

Powered by a high-efficiency 10 BLDC hub motor, the wheelbarrow delivers smooth, noiseless, and zero-emission operation. The thumb-operated throttle allows precise speed control, while the forward/reverse switch ensures easy maneuverability even in tight or uneven terrains.

With a dual load capacity of 120 kg on flat surfaces and 60 kg on uneven roads, this machine is suitable for handling soil, crops, construction materials, and industrial goods. The long-lasting sodium-ion battery supports up to 8 hours of operation, ensuring productivity throughout the workday. Optional solar charging further enhances energy efficiency.

Key Features:

• High-efficiency 10 BLDC hub motor with zero emission

• Forward & Reverse switch for easy control

• Thumb throttle operation for smooth handling

• Compact and lightweight design (36 kg net weight)

• Dual load capacity (120 kg flat / 60 kg all terrain)

• Durable powder-coated mild steel structure

• Long-lasting sodium-ion battery with BMS

• Tubeless tyre (9010010) for better grip

• Optional solar charging support

• Low maintenance and cost-effective operation

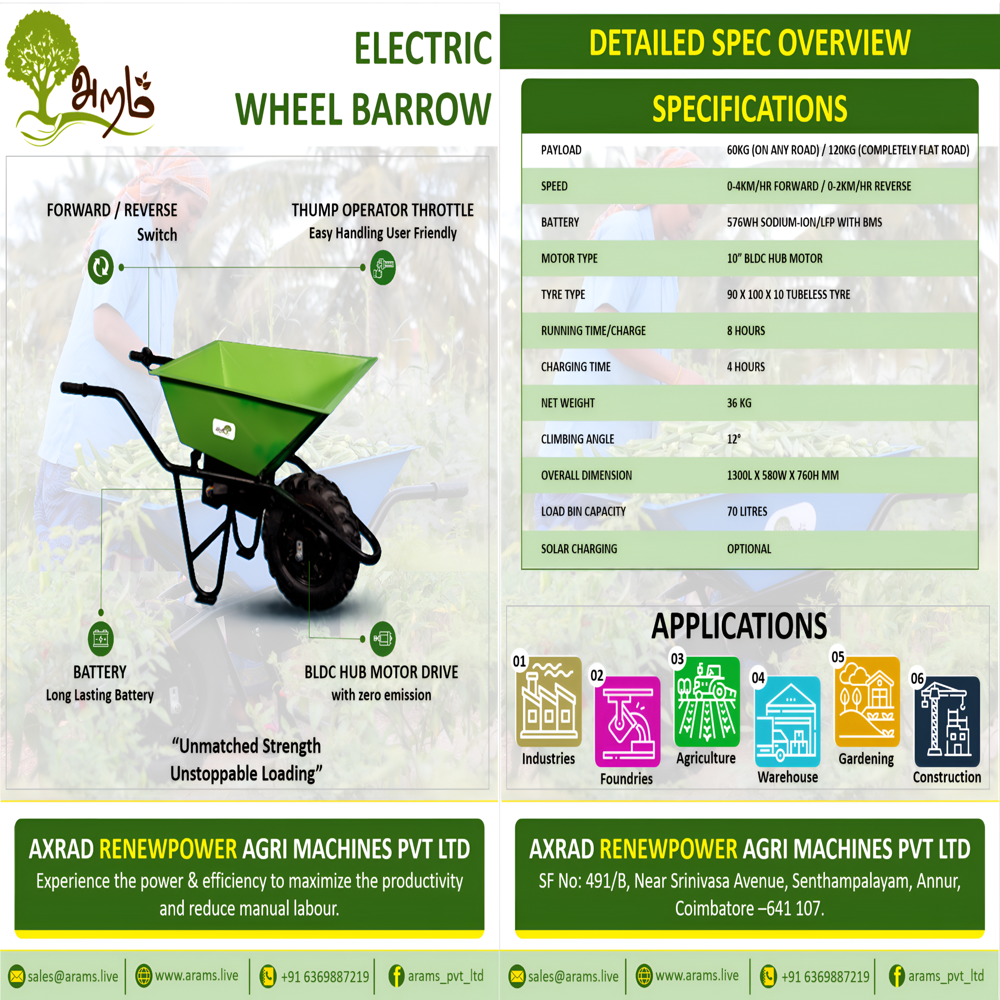

Technical Specifications:

• Payload Capacity: 60 kg (any road) / 120 kg (flat road)

• Speed: 04 km/hr (Forward), 02 km/hr (Reverse)

• Battery: 576 Wh Sodium-ion with BMS

• Motor Type: 10 BLDC Hub Motor

• Tyre Type: 90 100 10 Tubeless Tyre

• Running Time per Charge: 8 Hours

• Charging Time: 4 Hours

• Net Weight: 36 kg

• Climbing Ability: 12

Dimensions:

• Length: 1300 mm

• Width: 580 mm

• Height: 760 mm

• Solar Charging: Optional

FAQs (Frequently Asked Questions):

Q1: What is the load capacity of this electric wheelbarrow?
A: It supports 120 kg on flat surfaces and 60 kg on uneven terrain.

Q2: How long does the battery last?
A: The battery provides up to 8 hours of operation, depending on load and usage.

Q3: What is the charging time?
A: It takes approximately 4 hours for a full charge.

Q4: What motor is used in this model?
A: It is powered by a 10-inch BLDC hub motor, ensuring efficient and maintenance-free performance.

Q5: Is it suitable for agricultural use?
A: Yes, it is ideal for agriculture, gardening, and farm transport applications.

Q6: Can it handle slopes?
A: Yes, it supports up to 12 climbing angle.

Q7: Is solar charging available?
A: Yes, solar charging is optional.

Q8: What material is used for construction?
A: It is made from mild steel with powder coating for durability.

Q9: Is it easy to operate?
A: Yes, the thumb throttle and forward/reverse control make it very user-friendly.

Q10: What maintenance is required?
A: Minimal maintenancemainly battery care and routine inspection.
